HPanel 700S

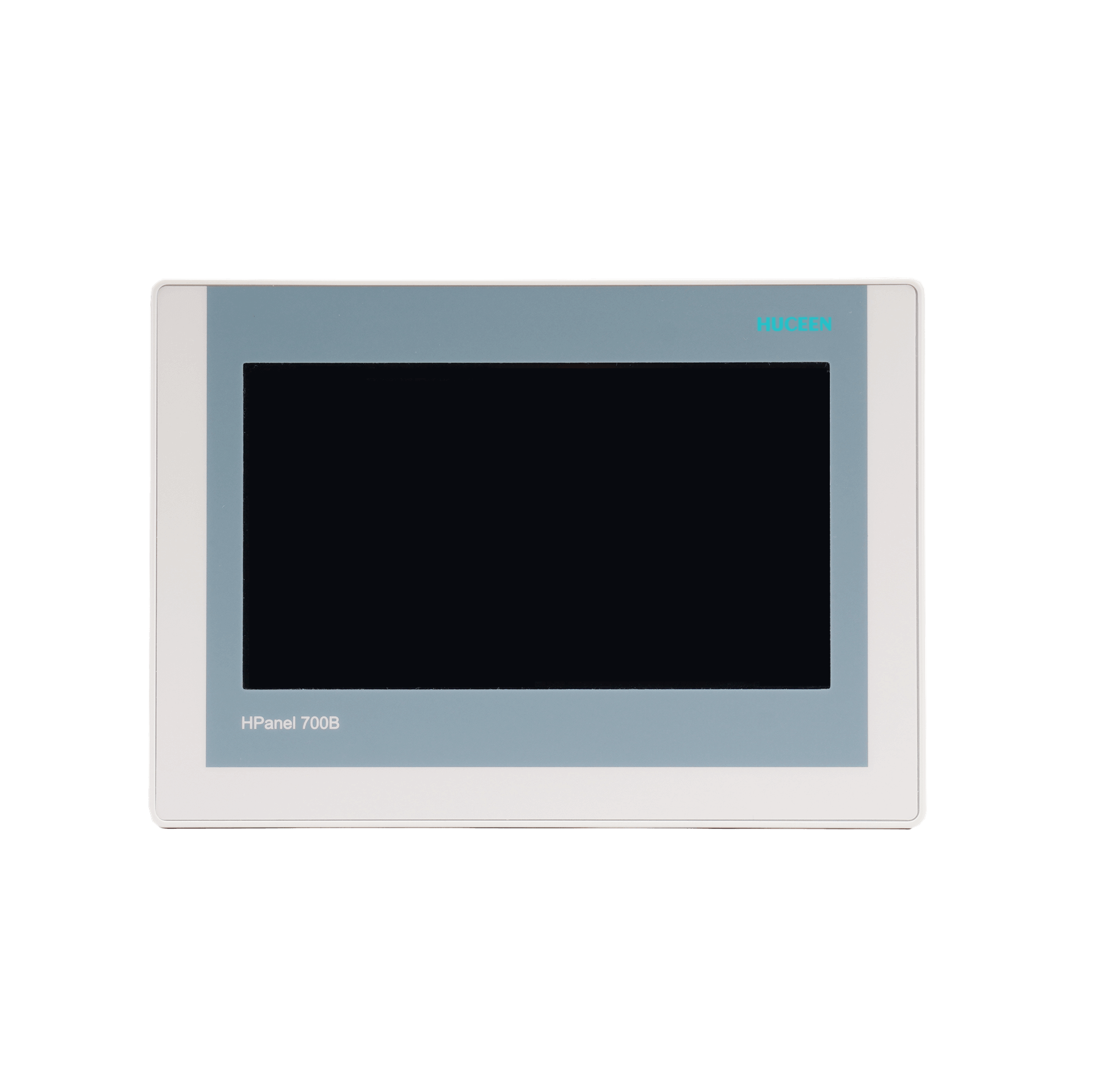

HUCEEN HPanel 700S / 700B 7-inch HMI
HPanel 700S (black) · HPanel 700B (white) · 1024 × 600
7-inch industrial touch panel with a dual-core 1 GHz processor, Ethernet, three serial ports and USB — an economical operator interface for HUCEEN and Siemens-compatible PLCs.
- 7-inch 16:9 TFT, 1024 × 600, 350 cd/m² LED backlight
- Dual-core ARM Cortex-A7 1 GHz, 256 MB DDR3 + 4 GB eMMC
- 1 × RJ45 Ethernet, COM1 RS232/RS485/RS422, COM2 RS485, COM3 RS232
- USB Type-C and Type-A; download via USB, U-disk or Ethernet
- IP65 front, 24 V DC (9–28 V), 0–50 °C
Genuine — original packaging, manufacturer warranty
Fast — stock items dispatched in 24–48 hrs
Supported — engineering help before and after sale
Key specifications
- Display
- 7" 16:9 TFT LCD, 1024 × 600, 350 cd/m²
- Touch
- 4-wire industrial resistive
- Processor / memory
- Dual-core Cortex-A7 1 GHz · 256 MB DDR3 + 4 GB eMMC
- Interfaces
- RJ45 10/100, COM1 RS232/485/422, COM2 RS485, COM3 RS232, USB-C, USB-A
- Supply
- 24 V DC (9–28 V)
- Protection
- IP65 front, IP20 rear
Specifications are indicative and vary by model. Share your exact part number for a confirmed quotation.
Models & order codes
| Order code / model | Description |
|---|---|
| HPanel 700S | 7-inch · black housing · standard model |
| HPanel 700B | 7-inch · white housing · basic model |
Typical applications
Machine operationOEM control panelsWater & HVAC stations
About HUCEEN
Shenzhen Huceen Automation Technology (est. 2015, 1 million+ units shipped) builds cost-effective PLCs programmed with the familiar Siemens tools — the E-200 SMART family with STEP 7-Micro/WIN SMART and the H7-1200 series with TIA Portal — plus PROFINET and PROFIBUS remote I/O, HPanel HMIs and HBox / Smart Box IoT gateways on the HCloud platform, all with a 3-year warranty.
All HUCEEN productsRelated hmi
View allSiemensHMI
SIMATIC HMI Comfort Panels
TP700 – TP2200 · KP400 – KP1500 Comfort
High-end operator panels with brilliant displays, archiving, scripting and extensive connectivity.
SiemensHMI
SIMATIC HMI Unified Comfort Panels
MTP700 – MTP2200 Unified
Next-generation multi-touch panels with web-based visualisation, edge apps and modern UX.
Delta ElectronicsHMI

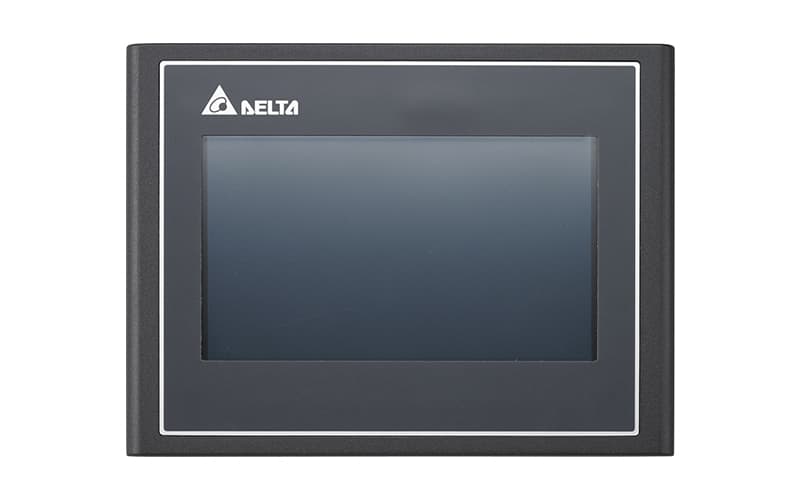

DOP-100 Series HMI
